Interscroller

A nonintrusive, automatically responsive, in-feed unit which scrolls into view as a user scrolls through the page content, delivering rich, highly-impactful brand experiences.

download-template

Resources:

Download our PSD templates for this format

Explore our Ad Gallery for examples of this format

In this article, you will learn:

Best Practices for Interscroller Unit Sizing Based on Target Devices

How to Build an Interscroller Unit

How to Configure the Interscroller Unit Properties

Best Practices for Trafficking Interscroller Units


Best Practices for Interscroller Unit Sizing Based on Target Devices

Below you will find guidance on sizing your Interscroller units for maximum interoperability across devices and platforms.

Build Tips

  • If trafficking on mobile devices, build an ad based on the smallest device you may target
  • Background overflow should be used to fill the full ad container on larger devices
  • If you are utilizing background overflow, leave the responsive option unchecked

Recommended Background Sizing

Background overflow is an integral part of the Interscroller's impact and should always be used to fill the full placement area on larger devices.

The following sizes are recommendations only.
Adventive always recommends testing your units on live pages prior to trafficking a campaign when possible.


Device Type Width Height
Mobile 1080 px 1920 px
Desktop 2560 px 1440 px


Recommended 'Safe Area' Sizing

'Safe Area' is the area in which all important content should be contained to, to ensure that it is visible on all devices.  You can check out the 'Safe Area' and how your content aligns to it by toggling the 'Safe Area' checkbox in the Interscroller settings panel. The following sizes are recommendations only for the 'Safe Area' for each device type:

Device Type Width Height
Mobile 960 px 1420 px
Desktop 1366 px 768 px

Best Practices for Trafficking Interscroller Units

Below you will find some guidance on trafficking Interscroller units in your 1st party ad server for maximum interpretability between devices:

  • The Interscroller format assumes that the window containing the page is scrollable.
  • When trafficking a Interscroller, it should always be placed inline or so that a user needs to scroll down through content to reach the ad.
  • The Interscroller format can only be trafficked in a Friendly iFrame
  • When trafficking in DFP / GAM - ensure that "Serve in SafeFrames" is unchecked.

See our article about Delivery Groups to read about serving multiple scroller units in a responsive delivery group which can target multiple devices with a single tag

How to Build an Interscroller Unit

Below you will find a step-by-step process to build a desktop Interscroller unit.  The steps below, combined with the recommended sizing charts above are similar when building mobile or tablet specific Interscroller units:

  1. Provide a unique Name for the unit, and select Interscroller from the Format dropdown
  2. Select the pre-populated Desktop option from the Dimensions dropdown (or select Custom to create your own)
  3. Backup Image (Optional) and Click URL (Optional) may be left blank at this time, click Submit.

new-desktop-reveal

Configuring the canvas

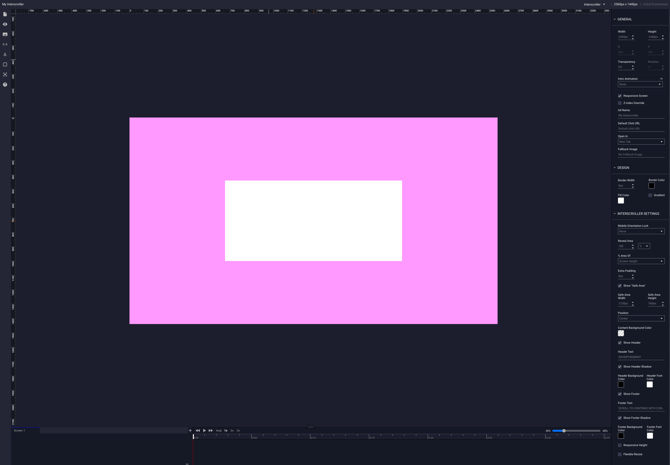

The builder will now load the main Interscroller canvas based on the recommended sizes listed above, or the custom sizes you have inputted in step #2.

The "white" section in the below example is consider the "Safe Area" where the most important content should reside.  Place your background image on the stage (overflow is fine), then ensure that the text/content are within the "Safe Area."

KB-Interscroller-Canvas-2

Configuring the General Ad Properties

Modifications can easily be made to the general ad configuration using the General Ad Properties panel on the right-hand side of the builder window.  See this article for instructions on configuring the General Ad Properties.

How to Configure the Interscroller Unit Properties

The Interscroller properties configuration options are explained below:

Mobile Orientation Lock

None - There is no orientation requirement.

Portrait - The user must have a device oriented in portrait mode, otherwise they will see a "Please rotate your device" alert.

Landscape - The user must have a device oriented in landscape mode, otherwise they will see a "Please rotate your device" alert.

Reveal Area

The area of the ad that you want the Interscroller to display. This is expressed in Pixels or Percentage.

For example - If % is selected, 100% = Full Screen Interscroller ; 50% = Half Screen.

For example - If Px is selected, 100px = Will show the Interscroller through a 100px tall window area, between the header and footer.

% Area Of

Percentage of the height of the Interscroller area refers to the entire screen height, or entire height of the ad itself, depending on what is selected in the dropdown menu.

Screen Height - Header and Footer will display around the ad unit, based on the height of the ad.

Ad Height - Header and Footer will display around the ad unit, based on the height of the screen it is viewed on.

Extra Padding

Allows you to add padding to the Interscroller unit.

For example - In the instance you plan to also run an Adhesion at the bottom of your site at the same time,  this would allow you to set the amount of pixels for padding, so the Interscroller will not conflict with the Adhesion.

Show "Safe Area"

When checked, the pink Safe Area overlay will be visible to aid in creative placement.

Safe Area Width Overrides the default Safe Area Width.
Safe Area Height Overrides the default Safe Area Height.
Position

The position of the ad unit within the container it is served in.  The options include: Top, Center, Bottom, and Scrolling.

Top - Select this if the Interscroller will be loaded within a container at the top of your site.

Center - Select this if the Interscroller will be loaded within an in-content/in-article ad container.

Bottom - Select this if the Interscroller will be loaded within a container at the bottom of your site.

Scrolling - Forces the ad unit to transition in from the bottom of the browser window, and once fully in view, will scroll with the page.  Upon reaching the top of the page, the unit will transition out.

Content Background Color

The background color that will be displayed in areas surrounding the ad canvas (optional).

Show Header

When checked, the Header Text bar will be displayed.

Header Text

The Header Text that will be displayed in the ad header text bar.  By default, this is set to "ADVERTISEMENT".

Show Header Shadow

If "Show Header" is selected, the option to "Show Header Shadow" will appear. If checked, a Shadow will appear under the Header Text bar.

Header Background Color If "Show Header" is selected, you have the option to change the background color of the Header Text bar.
Header Font Color If "Show Header" is selected, you have the options to change the font color of the Header Text.
Show Footer When checked, the Footer Text bar will be displayed.
Footer Text The Footer Text that will be displayed in the ad footer text bar.  By default, this is set to "SCROLL TO CONTINUE WITH CONTENT".
Show Footer Shadow If "Show Footer" is selected, the option to "Show Footer Shadow" will appear. If checked, a Shadow will appear under the Footer Text bar.
Footer Background Color If "Show Footer" is selected, you have the option to change the background color of the Footer Text bar.
Footer Font Color If "Show Footer" is selected, you have the options to change the font color of the Footer Text.
Responsive Height When checked, the size of the Interscroller will automatically adjust to fit the height of the browser window.  When used in conjunction with the responsive screen setting, the ad unit will automatically resize to fit the width and height of the browser window.



Previewing the Interscroller Unit

To preview the Interscroller unit you have just created, follow the instructions in this article.
